China LONGi High Efficiency Solar Panel 530w 535w 540w tier brand

  • 68250 - 9999999 Watts
    $0.26
  • >=10000000 Watts
    $0.24
Material:
Monocrystalline Silicon
Max. Power:
540w
Number of Cells:
144cells
Samples:
Monocrystalline Silicon , 540w , 144cells
$0.24 /Watt | 1 Watt (Min. Order) | Buy Samples
Lead Time:
Quantity(Watts) 1 - 200000 >200000
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 10000000 Watts)
Customized packaging (Min. Order: 10000000 Watts)

More

Graphic customization (Min. Order: 10000000 Watts) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Longi
Model Number:
LR5-72HBD 540
Type:
PERC, Half Cell, Bifacial, Monocrystalline silicon
Size:
2256*1133*35mm
Panel Efficiency:
21%
Certificate:
TUV ,CE ,ISO ,PID ,ROHS, IMETRO, ETL
Warranty:
12years, 30 years
Application:
Power Station
Junction Box:
IP 68 Rated
Glass:
2.0mm Dual Glass Tempered Glass
Frame:
Anodized Aluminium Alloy
Weight:
32.3KG
Output cable:
4mm^2,300mm
Packing:
30 Pcs One Pallet
OEM Order:
Customized Solar Panel Aavilable
Supply Ability
Supply Ability:
10000000000000 Watt/Watts per Month

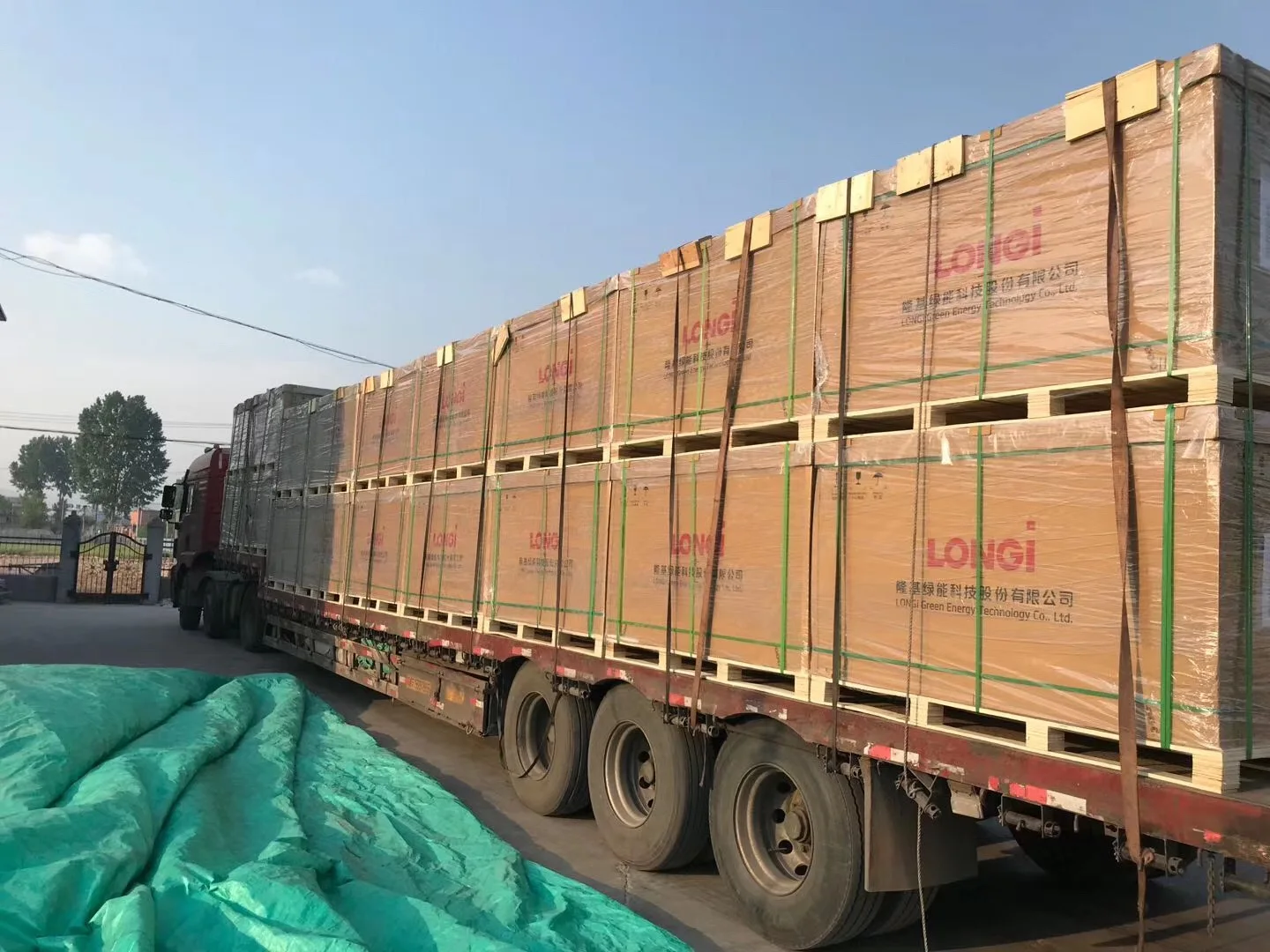

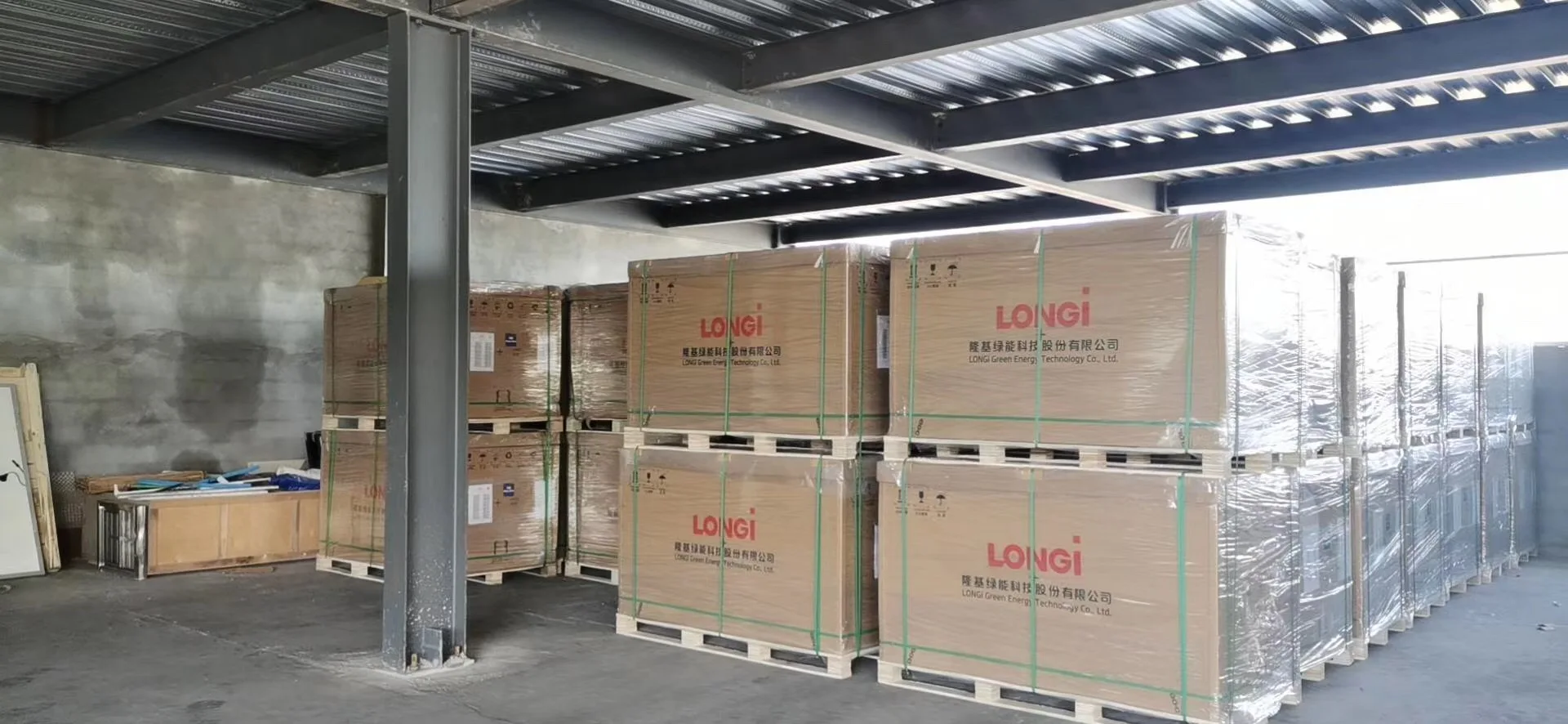

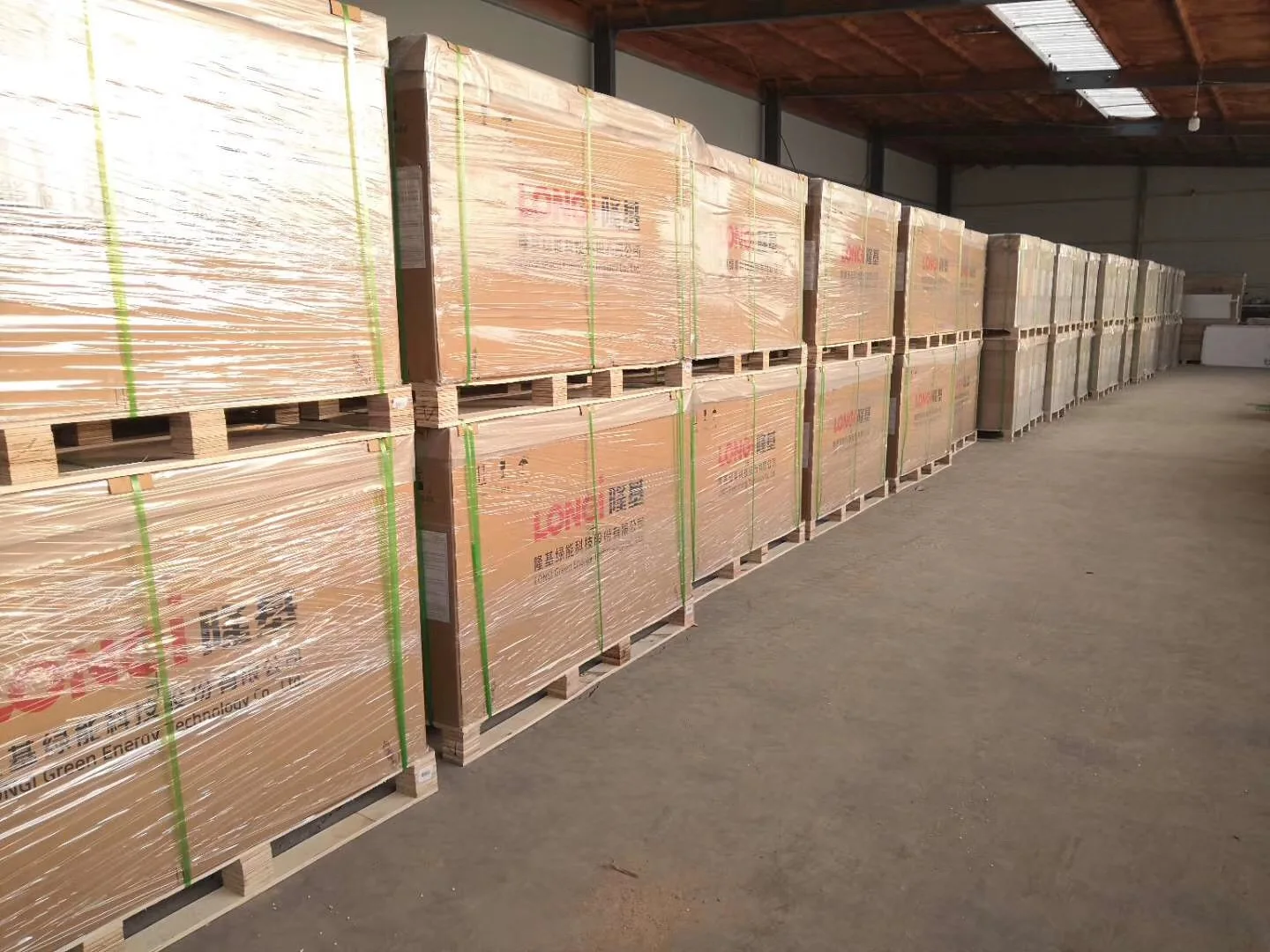

Packaging & Delivery
Packaging Details
30pcs per pallet
Port
China
Picture Example:
package-img
Lead Time :
Quantity(Watts) 1 - 200000 >200000
Est. Time(days) 7 To be negotiated
Product Description




Bifacial PERC.
For a bifacial PERC cell, the Al back surface field is replaced by Al grid, hence render the majority of rear side transparent
which enable the cell to absorb light and generate electricity from both sides.
Front side performance equivalent to conventional low LID mono PERC:
-High module conversion efficiency (up to 20.9%).
-Better energy yield with excellent low irradiance performance and temperature coefficient.
-First year power degradation<2%.
Bifacial technology enables additional energy harvesting from rear side(up to 25%).
Glass/glass lamination ensures 30 year product lifetime ,with annual power degradation <0.45%,
1500v compatible to reduce BOS cost.
Solid PID resistance ensures by solar cell process optimization and careful module BOM selection .
Reduced resistive loss with lower operating temperature.
Higher energy yield with lower operating temperature.
Reduced hot spot risk with optimized electrical design and lower operating current.

Cell efficiency>22%,anti-LID,anti-PID,1st year degradation≤2%

Design for short frame without C side can reduce the shading caused by frame

Electrical Characteristics                                                                                                              Test uncertainty for Pmax:±3%
Model Number
LR5-72HBD-530M
LR5-72HBD-535M
LR5-72HBD-540M
Testing Condition
STC
NOCT
STC
NOCT
STC
NOCT
Maximum Power(Pmax/W)
530
395.8
535
399.5
540
403.3
Open Circuit Voltage(Voc/V)
49.20
46.03
49.35
46.17
49.50
46.31
Short Circuit Current(Isc/A)
13.71
11.08
13.78
11.14
13.85
11.19
Voltage at Maximum Power(Vmp/V)
41.35
38.55
41.50
38.69
41.65
38.83
Current at Maximum Power (Imp/A)
10.80
8.65
10.87
8.70
10.93
8.76
Module Efficiency(%)
20.7%
20.9%
21.1%
STC(Standard Testing Conditions):Irradiance 1000w/m²，Cell Temperature 25℃，Spectra at AM1.5.
NOCT(Nominal Operating Cell Temperature)
Pmax/W
Voc/V
Isc/A
Vmp/V
Imp/A
Pmax gain
467
49.4
12.09
41.2
11.34
5%
490
49.4
12.67
41.2
11.88
10%
512
49.5
13.24
41.3
12.42
15%
534
49.5
13.82
41.3
12.96
20%
556
49.5
14.40
41.3
13.50
25%
Electrical characteristics with different rear side power again (reference to 445W front)

Bifacial Power Generation:

The energy yield of bifacial module can be influenced by albedo, height of module, GCR and DHI etc. Installation height of
bifacial module is recommended to be higher than 1m. Shading from bracket and junction box should be avoided. At present, the power generation of bifacial module on fixed brackets and single axis tracker can be simulated with PVsyst. Investors can determine the DC/AC ratio of bifacial module system to minimize the LCOE.
Packing & Delivery
