solar system 156 cells half cell 580W solar products solar module
Hot sale products
Hot sale in
-
1000 - 199999 Watts
$0.22
-
>=200000 Watts
$0.20
- Material:
- Monocrystalline Silicon
- Max. Power:
- 580W
- Number of Cells:
- 156pcs
- Lead Time:
-
Quantity(Watts) 1 - 200000 >200000 Est. Time(days) 7 Negotiable
- Customization:
-
Customized logo (Min. Order: 10000 Watts)Customized packaging (Min. Order: 10000 Watts)
More
Graphic customization (Min. Order: 10000 Watts) Less
Product Details
Company Profile
Overview
Quick Details
- Place of Origin:
-
Anhui, China
- Brand Name:
-
PNG Solar
- Model Number:
-
PNG-156M
- Type:
-
PERC, Standard Solar Panel
- Size:
-
2472*1135*35mm
- Panel Efficiency:
-
20.7%
- Certificate:
-
CE TUV, TUV/IEC61215/IEC61730/CE/ISO
- Warranty:
-
25 years, 25 Years
- Cell Class:
-
A grade
- Glass:
-
3.2mm Tempered Low Iron
- OEM:
-
accept
- Colar:
-
White/Black
- Application:
-
Solar Panel System/Solar Pump/Power station
- Solar Cell:
-
182*182mm
- Cell Type:
-
5bb/6bb/9bb/10bb/12bb
Product Certification
- TUV Certified.
- Valid from 2020-06-12 until 2021-04-27
Supply Ability
- Supply Ability:
- 100000000000 Watt/Watts per Year
Packaging & Delivery
- Packaging Details
- 31pcs/ pallet
- Port
- Shanghai
- Picture Example:
-
- Lead Time :
-
Quantity(Watts) 1 - 200000 >200000 Est. Time(days) 7 To be negotiated
Online Customization
Video Description

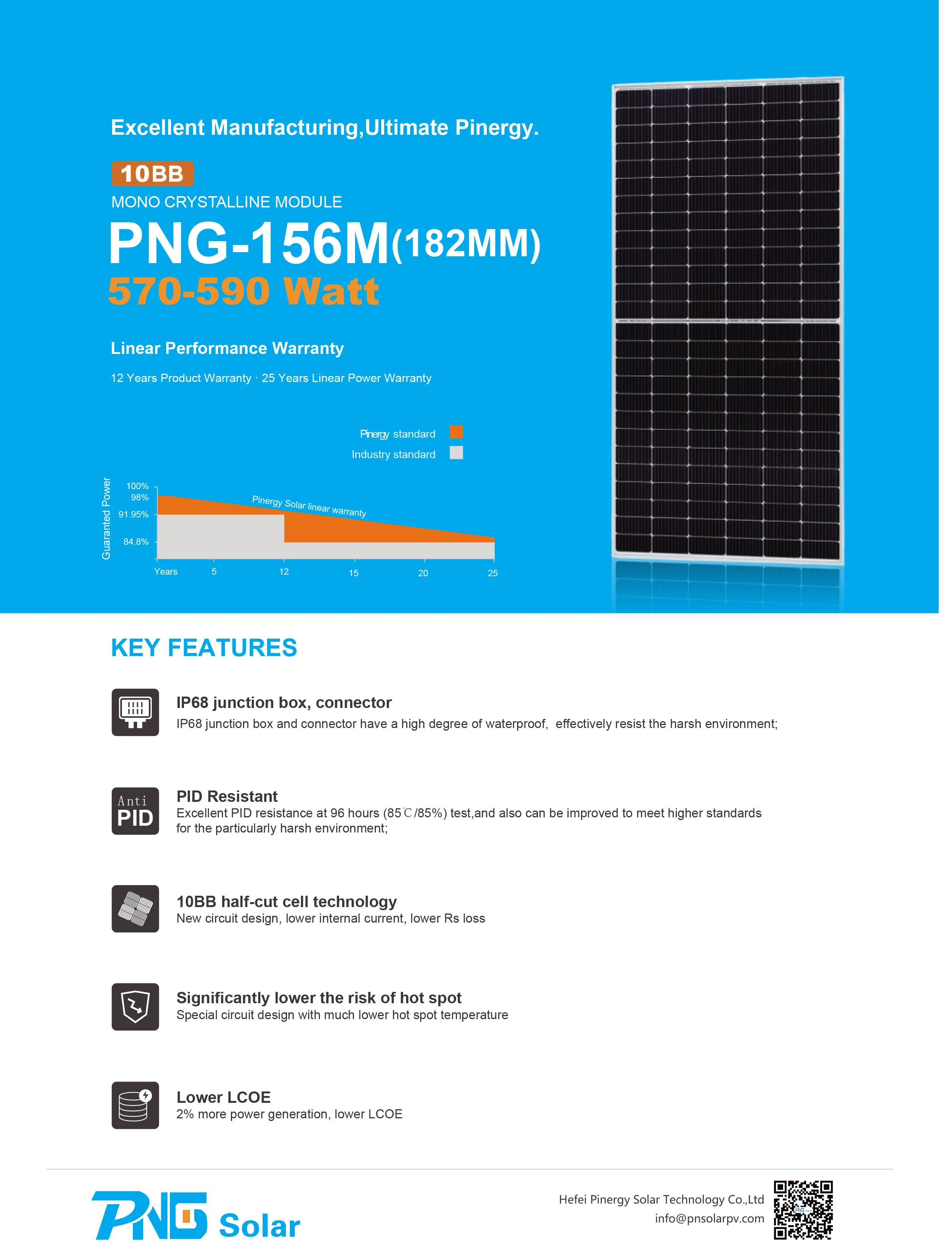

Product Description
PNGSolar is professional manufacturer of solar panel.

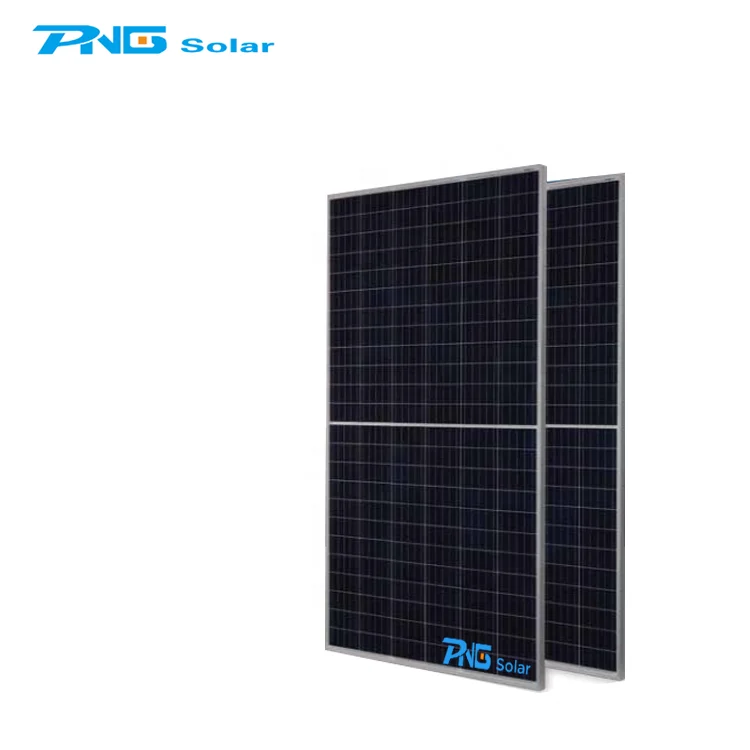

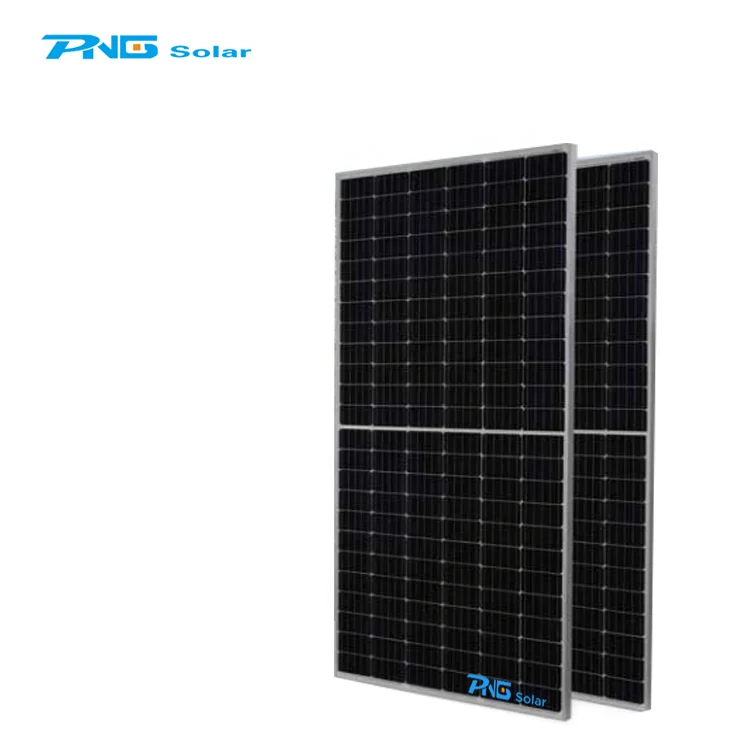

Monocrystalline 156 cells Solar Panel.
Solar Cell Size:182*182mm
Power Range : 570-590W
Monocrystalline 156 cells Solar Panel.
Solar Cell Size:182*182mm
Power Range : 570-590W

ELECTRICAL DATA(STC)
Module Type | PNG156M-570 | PNG156M-575 | PNG156M-580 | PNG156M-585 | PNG156M-590 | ||||
Rated output (Pmp/Wp) | 570 | 575 | 580 | 585 | 590 | ||||
Short Circuit Current(Isc) | 13.16A | 13.75A | 13.81A | 13.87A | 13.94A | ||||
Open Circuit Voltage(Voc) | 52.9V | 53.1V | 53.3V | 53.5V | 53.7V | ||||
Maximum Power Current(Impp) | 12.96A | 13.01A | 13.07A | 13.12A | 13.17A | ||||
Maximum Power Voltage(Vmpp) | 44V | 44.2V | 44.4V | 44.6V | 44.8V | ||||
Module efficiency(%) | 20.3% | 20.5% | 20.7% | 20.9% | 21.0% | ||||
Power Tolerance (W) | 0~+5W | 0~+5W | 0~+5W | 0~+5W | 0~+5W | ||||
Standard Test Condition(STC) | Irradiance 1000W/m², Cell Tempera ture 25ºC, AM1.5 |
ELECTRICAL DATA(NOCT)
Module Type | PNG156M-570 | PNG156M-575 | PNG156M-580 | PNG156M-585 | PNG156M-590 | ||||
Rated output (Pmp/Wp) | 420.2 | 423.7 | 427.6 | 431.1 | 434.6 | ||||
Short Circuit Current(Isc) | 11.04 | 11.08 | 11.13 | 11.18 | 11.23 | ||||
Open Circuit Voltage(Voc) | 49.4 | 49.6 | 49.8 | 50.0 | 50.2 | ||||
Maximum Power Current(Impp) | 10.22 | 10.27 | 10.32 | 10.36 | 10.41 | ||||
Maximum Power Voltage(Vmpp) | 41.1 | 41.3 | 41.4 | 41.6 | 41.8 | ||||
Nominal Module Operating Temperature(NOCT) | Irradiance 800W/m²,Ambient Temperature 20ºC, AM1.5, Wind Speed 1m/s |
Product Details

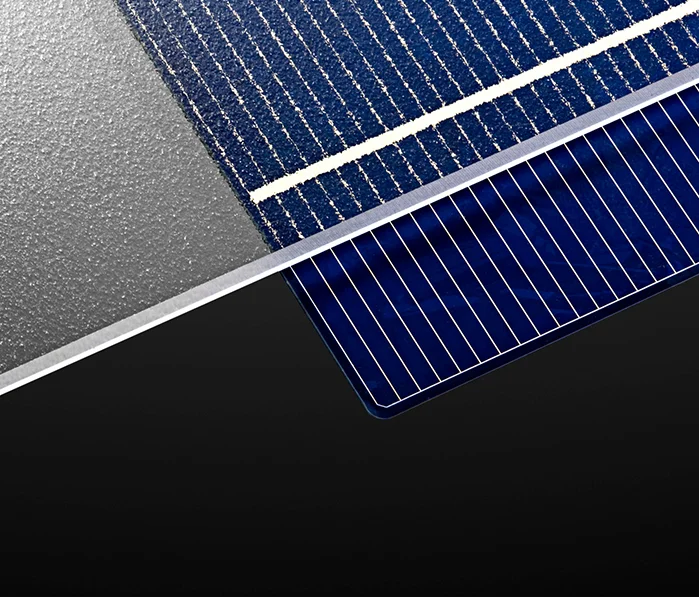

PV CELL.
>Low hot spot effect
>No light-induced degradation
>High conversion efficiency with high reliability
>Uniform cell performance with stable process control
>Excellent power generation performance under low irradiation
>No light-induced degradation
>High conversion efficiency with high reliability
>Uniform cell performance with stable process control
>Excellent power generation performance under low irradiation

BACKSHEET.
>Good electrical insulation and breakdown.
>Excellent UV resistance and aging resistance.
>Made-to-order backsheet with width up to 1300mm.
>Double-side fluorocarbon strcture(PVF//PET//PVF) with the integration of Tedlar(DuPont).
>Excellent UV resistance and aging resistance.
>Made-to-order backsheet with width up to 1300mm.
>Double-side fluorocarbon strcture(PVF//PET//PVF) with the integration of Tedlar(DuPont).

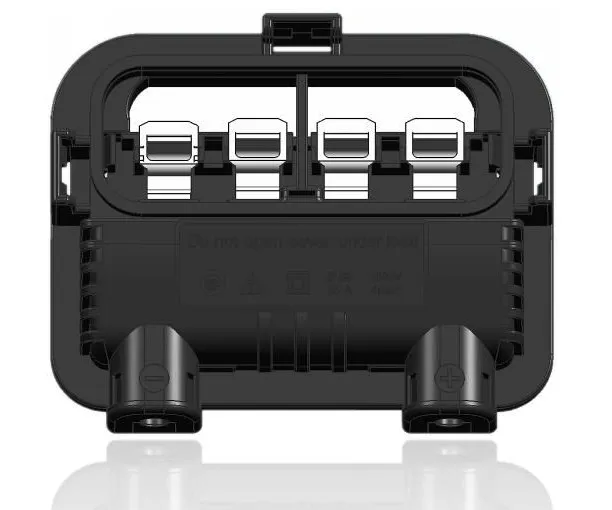

JUNCTION BOX.
>IP68 protection level.
>Unique split junction box design to minimize the loss caused by occlusion.
>Combination of series circuit and parallel circuit, reduced internal power loss.
>Unique split junction box design to minimize the loss caused by occlusion.
>Combination of series circuit and parallel circuit, reduced internal power loss.

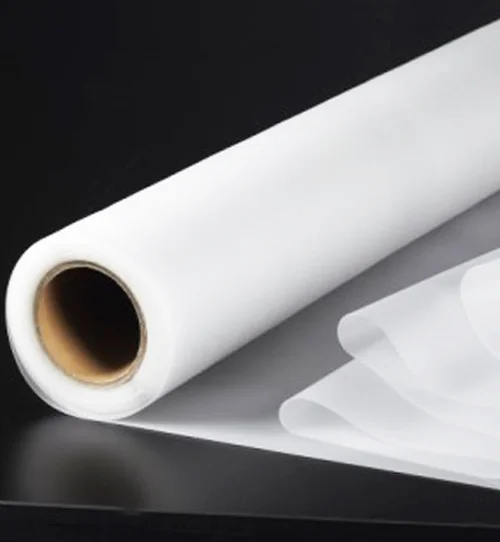

EVA.
>Excellent light transmittance and transparency.
>Excellent long term adhesion to glass,mental and polymer backsheet.
>Excellent durability ,such as weather resistance ,high-temperature,high-humidity and UV light resistance.
>Excellent long term adhesion to glass,mental and polymer backsheet.
>Excellent durability ,such as weather resistance ,high-temperature,high-humidity and UV light resistance.

GLASS.
>Precise edge processing and cutting.
>Minimal optical distortion and non-existent roller marks.
>Physically tempered ultrathin glass presents the ideal combination of durability and flexibility.
>Higher light transmittance ensures higher module power output.
>Minimal optical distortion and non-existent roller marks.
>Physically tempered ultrathin glass presents the ideal combination of durability and flexibility.
>Higher light transmittance ensures higher module power output.
Production Process

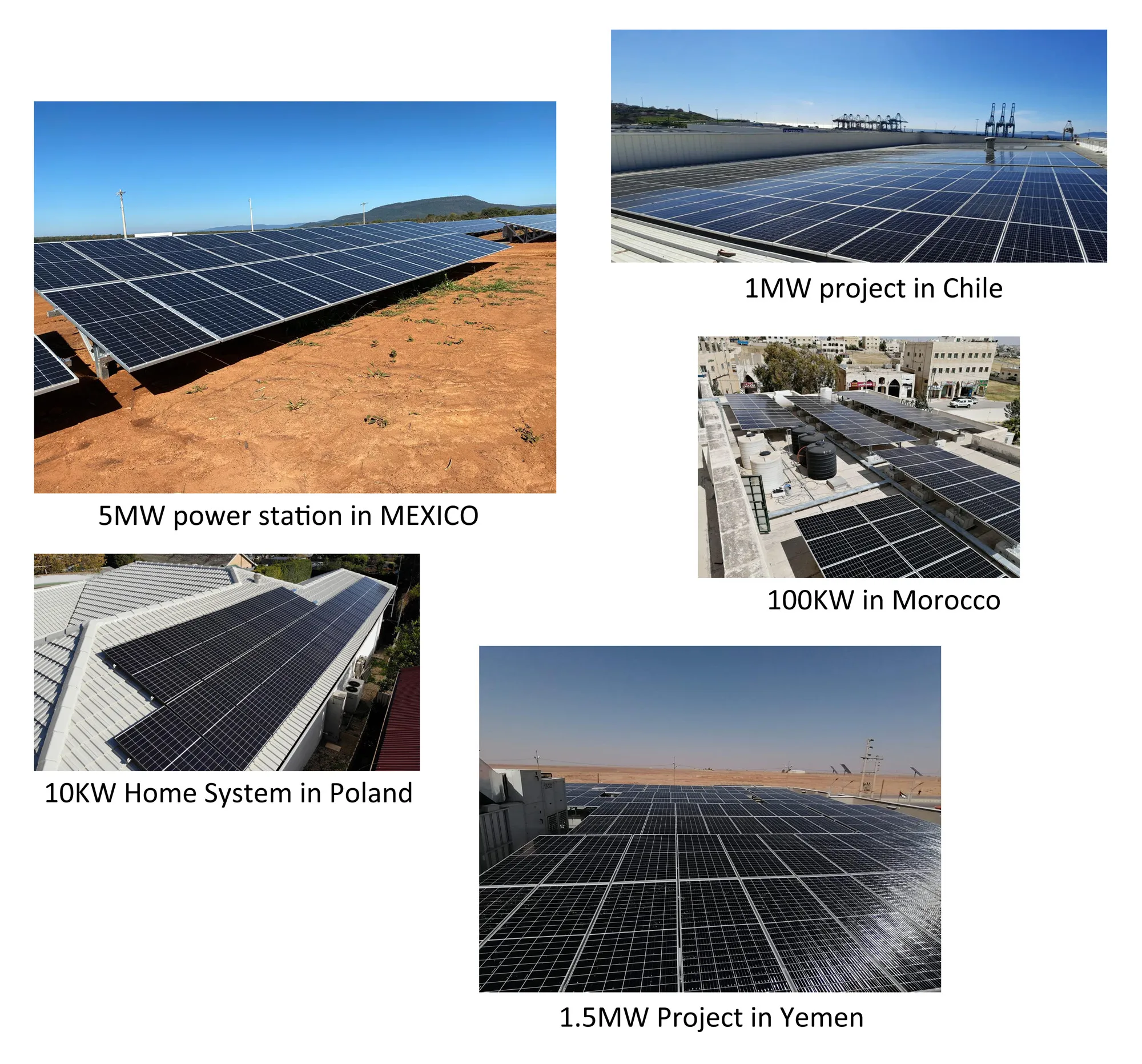

Project


Factiory
Hefei Pinergy Solar Technology Co.,Ltd is a professional and fast growing company.The business covers the R&D,production and sales of PV modules.Power station and PV system products, power generation and operation and maintenance services,etc.The company is located in Hefei City, Anhui Province, which is one of the main production bases of the photovoltaic industry in the world.We are world-renowned manufacturer and supplier of solar cells, solar PV modules and solar systems. Covering an area of 46000 square meters,we have more than 200 employees now,which makes annual production capacity of 800MW and 90% were exported all over the world. The advanced production system and excellent quality control have enabled us to win the trust and support of our customers.We have got certificates of TUV,CE,etc.At present, PINERGY has established a global sales network covering 70 countries/regions.Mainly covering Europe, Asia and South America, customers all over the world.

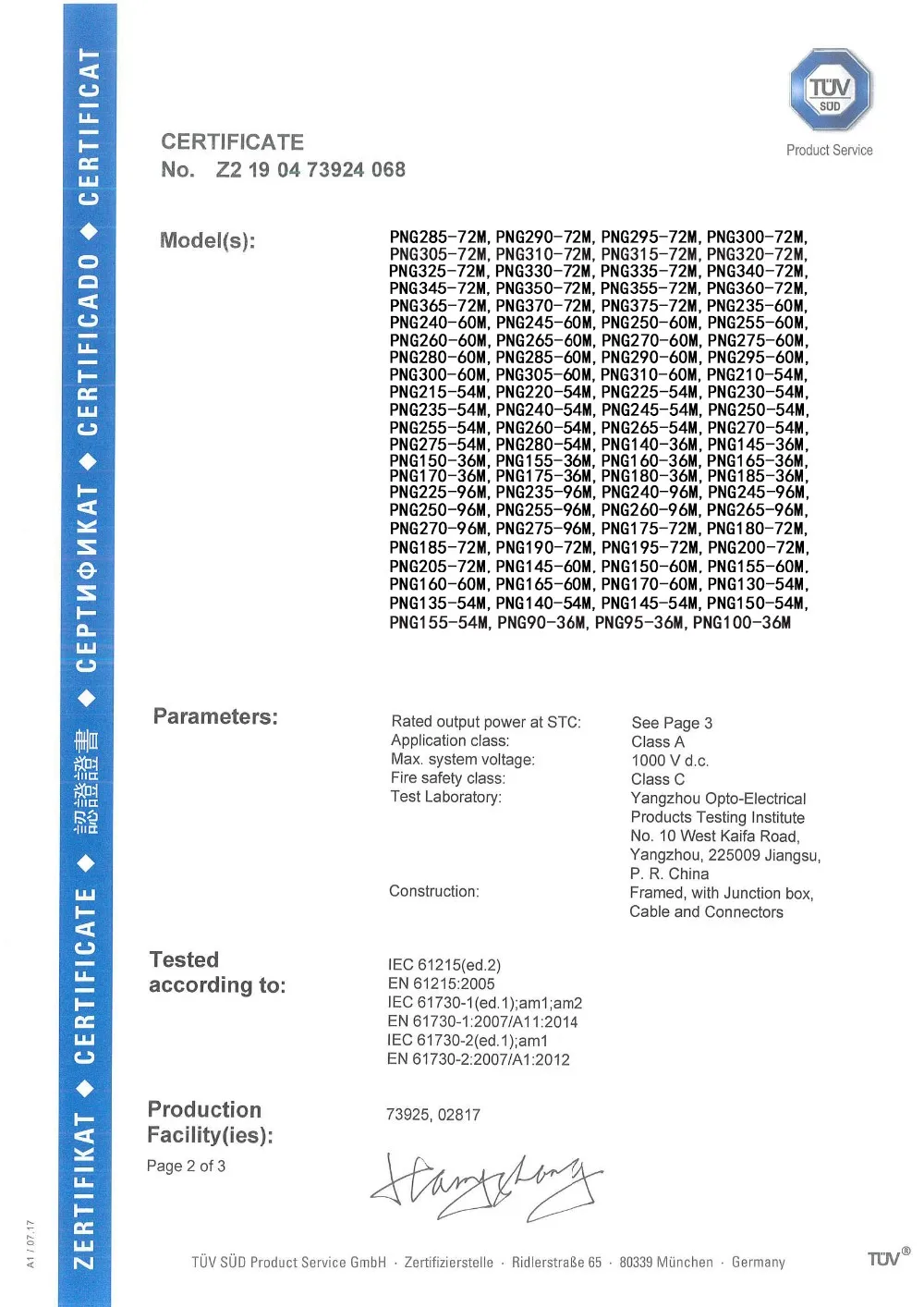

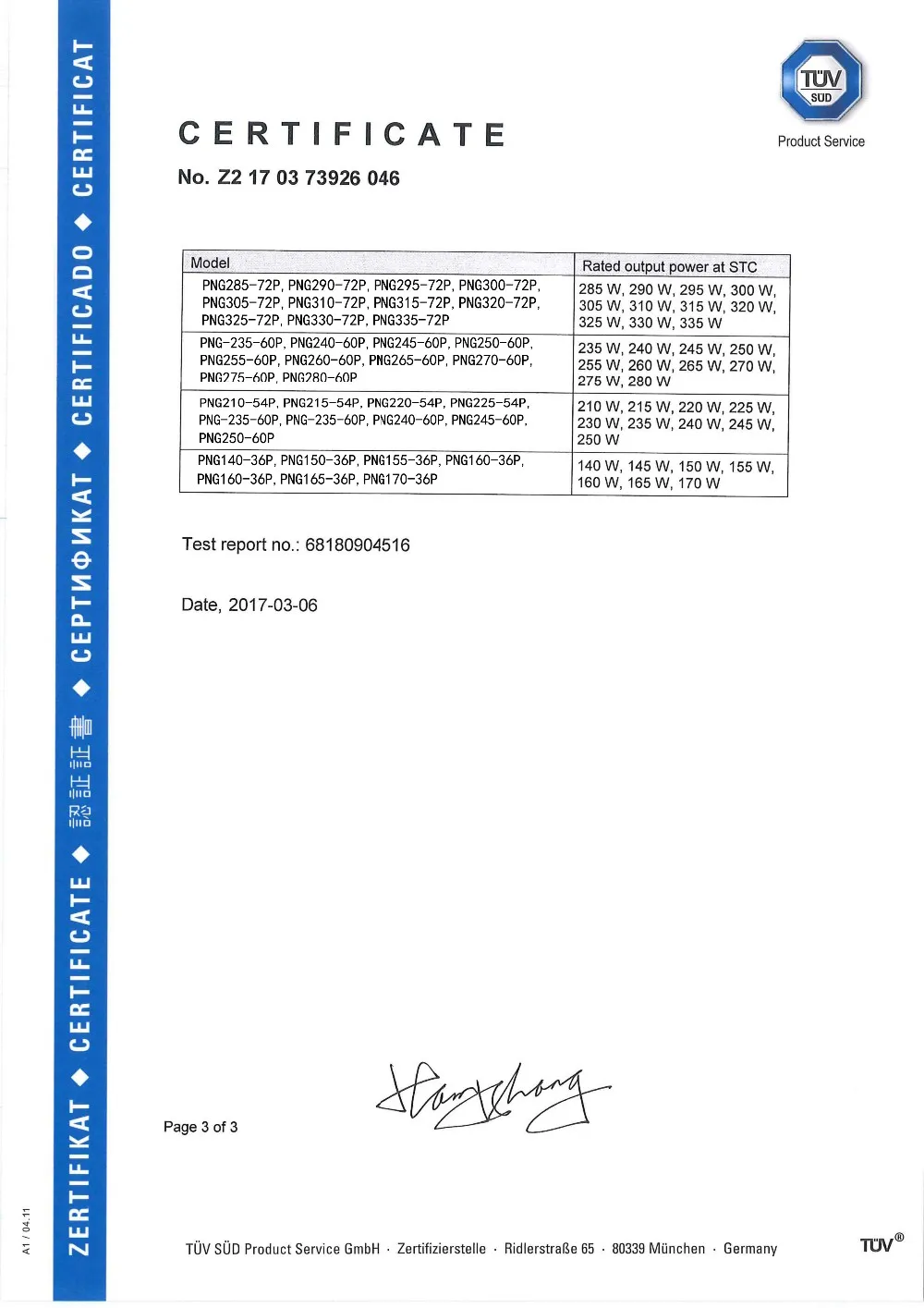

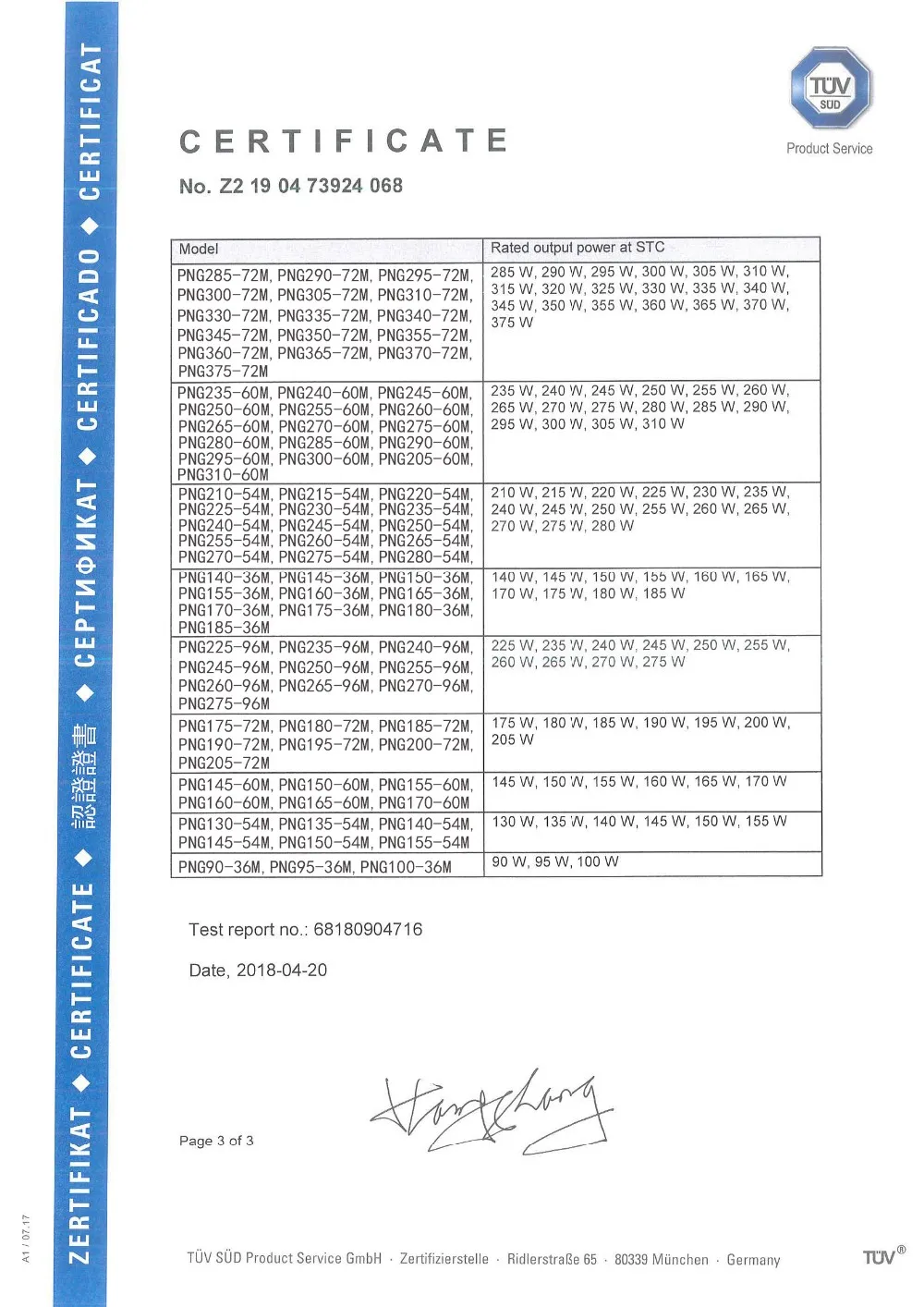

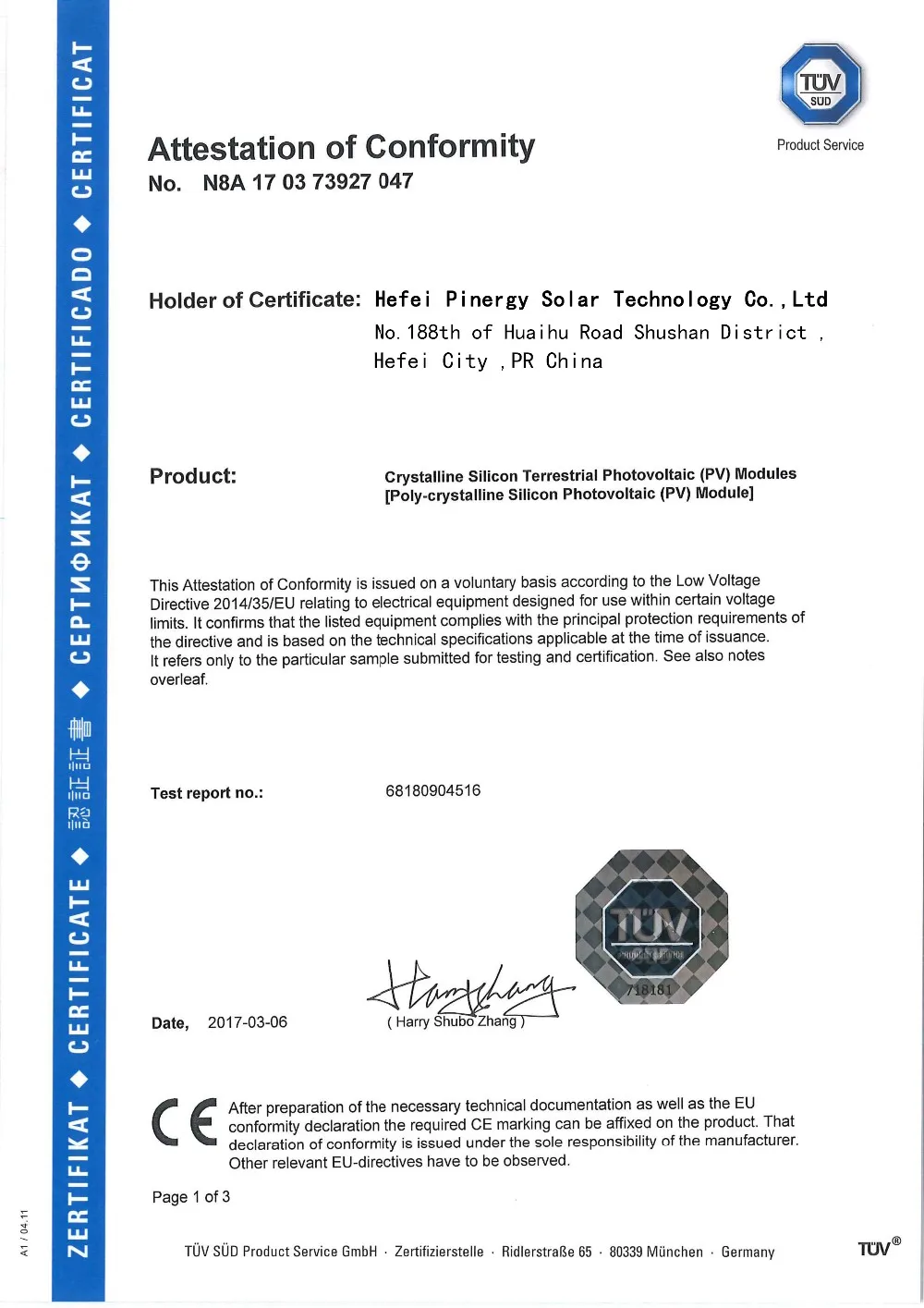

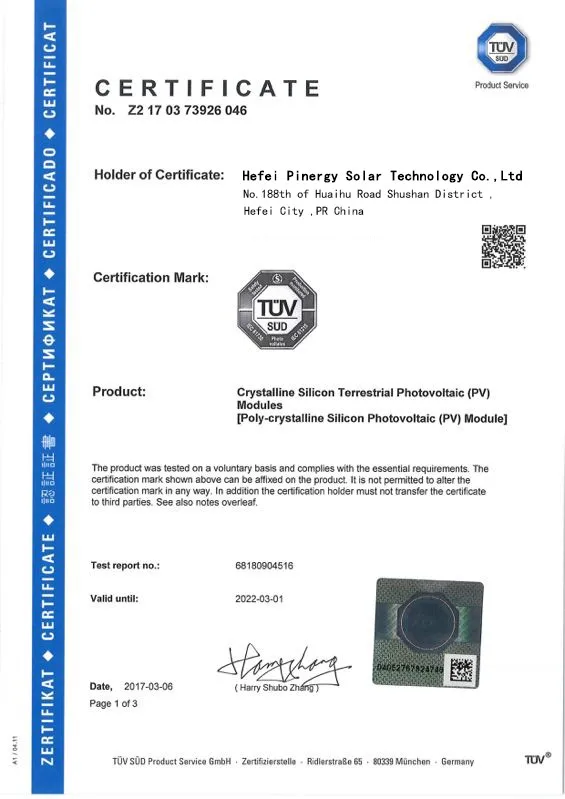

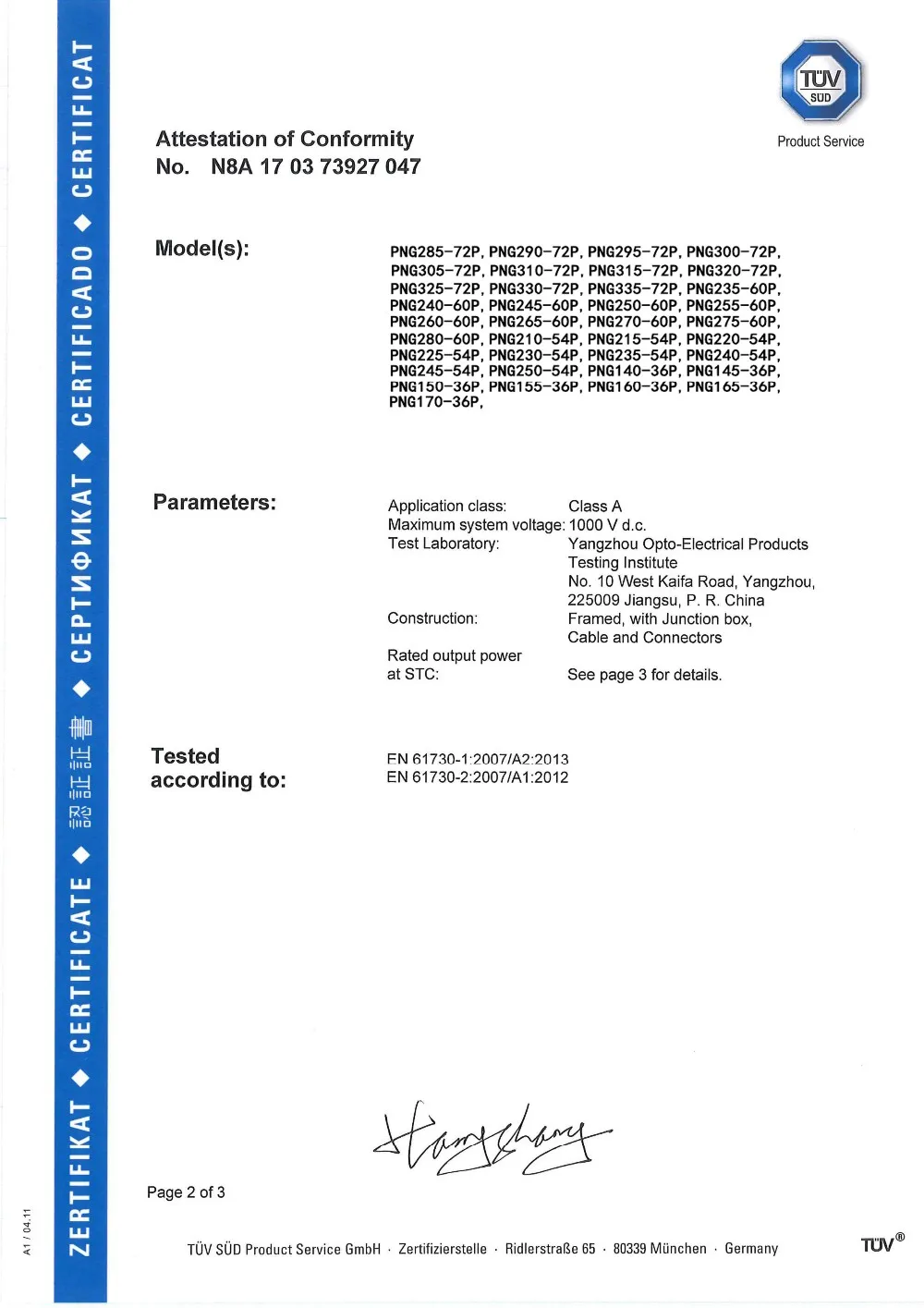

Certificates
