solar power panel 440W mono half cell solar products

  • 1000 - 199999 Watts
    $0.22
  • >=200000 Watts
    $0.20
Material:
Monocrystalline Silicon
Max. Power:
440W
Number of Cells:
144pcs
Lead Time:
Quantity(Watts) 1 - 200000 >200000
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 10000 Watts)
Customized packaging (Min. Order: 10000 Watts)

More

Graphic customization (Min. Order: 10000 Watts) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China
Brand Name:
PNG Solar
Model Number:
PNG440-144M(166)
Type:
PERC, Standard Solar Panel
Size:
2018*1048*35mm
Panel Efficiency:
19.92%
Certificate:
CE TUV, TUV/IEC61215/IEC61730/CE/ISO
Warranty:
25 years, 25 Years
Cell Class:
A grade
Glass:
3.2mm Tempered Low Iron
OEM:
accept
Colar:
White/Black
Application:
Solar Panel System/Solar Pump/Power station
Solar Cell:
166*166mm
Product Certification certification
TUV Certified.
Valid from 2020-06-12 until 2021-04-27
Supply Ability
Supply Ability:
100000000000 Watt/Watts per Year
Packaging & Delivery
Packaging Details
30pcs/ pallet
Port
Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Watts) 1 - 200000 >200000
Est. Time(days) 7 To be negotiated
Video Description
Product Description

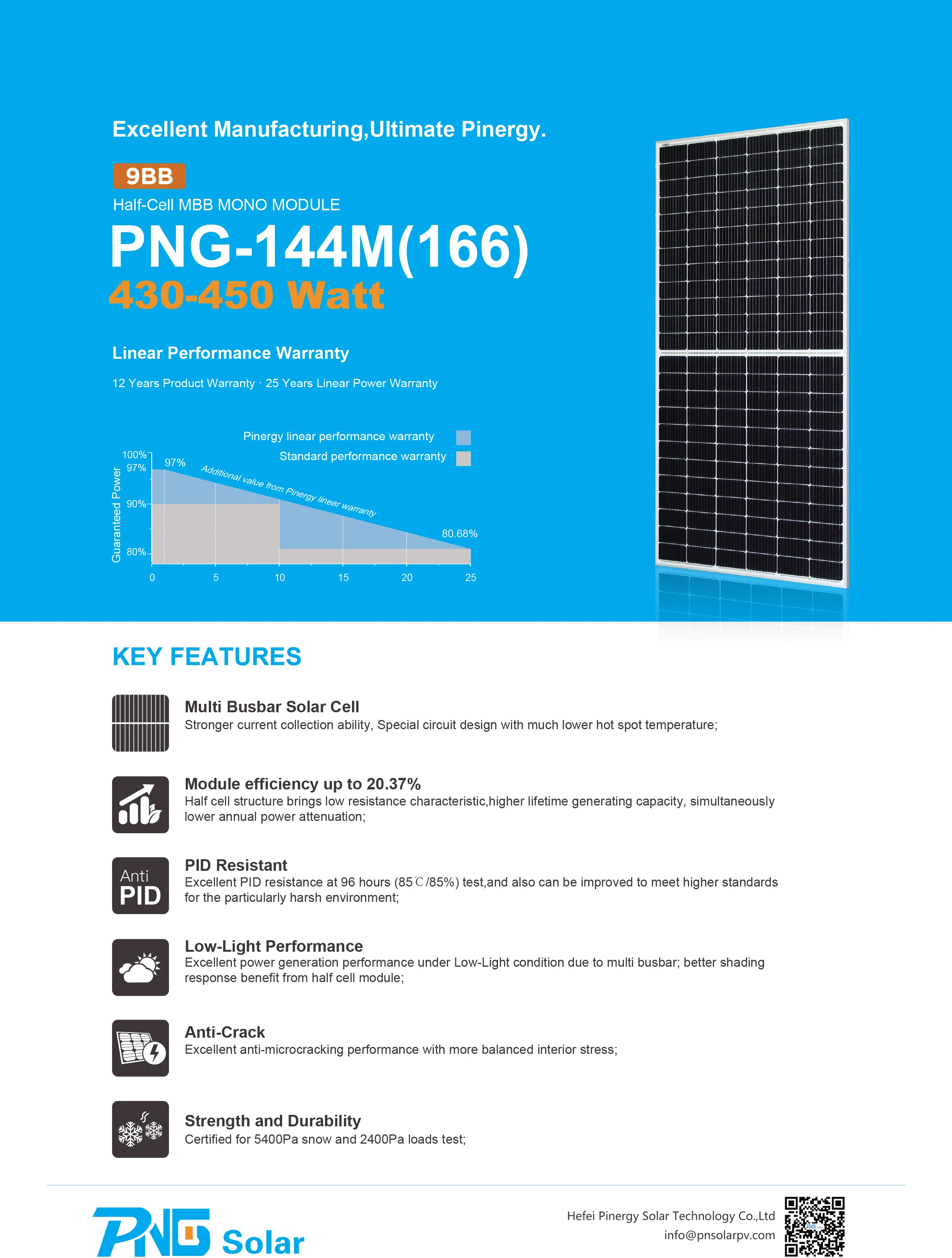

PNGSolar is professional manufacturer of solar panel.
Monocrystalline 144cells Solar Panel.
Solar Cell Size:166*166
Power Range : 430W-450W
ELECTRICAL DATA(STC)
Module Type
PNG-144M-435
PNG-144M-440
PNG-144M-445
PNG-144M-450
Rated output (Pmp/Wp)
435
440
445
450
Short Circuit Current(Isc)
11.24A
11.30A
11.36A
11.42A
Open Circuit Voltage(Voc)
48.7V
49.0V
49.2V
49.5V
Maximum Power Current(Impp)
10.80A
10.86A
10.92A
10.98A
Maximum Power Voltage(Vmpp)
40.3V
40.5V
40.8V
41.0
Module efficiency(%)
19.69%
19.92%
20.14%
20.37%
Power Tolerance (W)
0~+5W
Standard Test Condition(STC)
 Irradiance 1000W/m², Cell Tempera ture 25ºC, AM1.5
ELECTRICAL DATA(NOCT)
Module Type
PNG-144M-435
PNG-144M-440
PNG-144M-445
PNG-144M-450
Rated output (Pmp/Wp)
322
325
329
333
Short Circuit Current(Isc)
9.08
9.13
9.18
9.23
Open Circuit Voltage(Voc)
45.4
45.6
45.8
45.9
Maximum Power Current(Impp)
8.73
8.77
8.82
8.87
Maximum Power Voltage(Vmpp)
36.9
37.1
37.3
37.5
Nominal Module Operating Temperature(NOCT)
Irradiance 800W/m²,Ambient Temperature 20ºC, AM1.5, Wind Speed 1m/s
Product Details
Production Process
Project
Factiory
Hefei Pinergy Solar Technology Co.,Ltd is a professional and fast growing company.The business covers the R&D,production and sales of PV modules.Power station and PV system products, power generation and operation and maintenance services,etc.The company is located in Hefei City, Anhui Province, which is one of the main production bases of the photovoltaic industry in the world.We are world-renowned manufacturer and supplier of solar cells, solar PV modules and solar systems. Covering an area of 46000 square meters,we have more than 200 employees now,which makes annual production capacity of 800MW and 90% were exported all over the world. The advanced production system and excellent quality control have enabled us to win the trust and support of our customers.We have got certificates of TUV,CE,etc.At present, PINERGY has established a global sales network covering 70 countries/regions.Mainly covering Europe, Asia and South America, customers all over the world.
